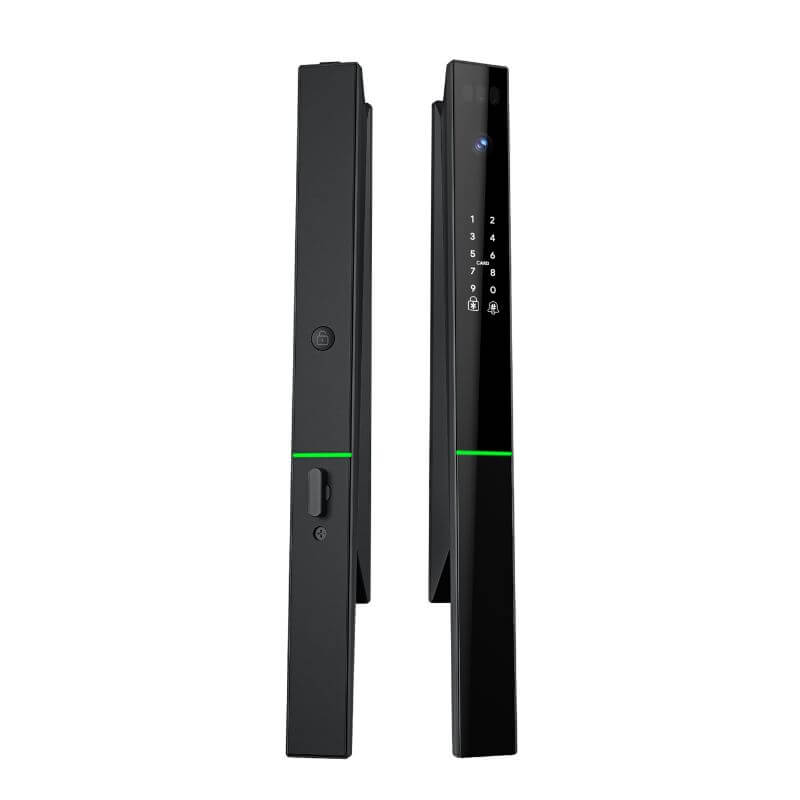

Slim Automatic - Face Recognition, Fingerprint and Keyless Entry Smart Mortise Lock (SDL-SA1)
Model: SDL-SA1Delivery time 3-8 business days
Ships within Australia
2 People are viewing this right now
STORY
Are you looking for a true keyless smart door lock that unlocks with just a glance?
✔️ Introducing the SDL-SA1 Slim Automatic - a fully automatic smart mortise lock with 3D face recognition. Walk up to your door, and the lock recognises you and unlocks itself. No keys, no codes, and no phone to fumble for. Its slim handle-free design, wireless installation and weather-resistant construction make it ideal for both internal and external doors.
✔️ Six ways to unlock: face recognition, fingerprint, keypad/code, key fob, the TTLock app and a mechanical key override. Face recognition doesn't depend on ambient light, so it works in complete darkness as well as in daylight - ideal for arriving home after dark with your hands full.
✔️ Designed for narrow door stiles, this digital mortise lock is suitable for aluminium, metal or wooden doors, with 35mm and 60mm swing backset options to suit most entrance doors in the Australian market. It is also reversible to suit both left and right handed doors. (See Fitment and Specifications for details)
✔️ The built-in video doorbell with night vision lets you see and speak with whoever is at your door, from anywhere. And with Wi-Fi built into the lock, you can manage access remotely, receive notifications when your door is opened, and use Amazon Alexa or Google Assistant - no separate Wi-Fi Bridge required.
SHIPPING
- Free standard shipping on all orders anywhere in Australia
- Estimated standard delivery time 3-8 business days
- Estimated express delivery 1-3 business days
100% AUSSIE OWNED AND OPERATED
- We are a fully Australian owned & operated company
- All products are shipped from within Australia
- 100% Australian sales/after-sales support team
OUR GUARANTEE
100% No-Fuss Guarantee
If it doesn't meet your expectations or if you encounter any issues, please contact our support team for a quick resolution or a refund. No-Fuss.
Product information
Technical Terms
These are the some of the specialised terms we use.
Familiarising yourself with these terms will help you understand the terminology commonly used in the world of door locks.
[Image: Typical door lock on a door]
✔️ Backset
Distance between the edge of the door and the centre of the door lock.
✔️ Door Stile/Frame
The door stile/frame is the flat surface area where the smart door lock is mounted, and the minimum door stile refers to the minimum surface area required for a specific lock. Check the 'Fitment' section of each lock to find its minimum door stile requirement.
✔️ Mortise/Mortise Lock
A type of lock that is installed within a door, with the lock body embedded or recessed into a mortise pocket within the door. A mortise lock size usually refers to the Backset of that specific mortise.
For example, 'Swing - 28mm' = Mortise lock with a 28mm Backset for a Swing Door.
✔️ Latch
A spring-loaded mechanism that keeps the door closed when engaged and can be released by turning a doorknob or lever.
✔️ Deadbolt
A bolt that extends into the door jamb to prevent the door from being forced open.
✔️ Striker Plate/Strike Plate
The a metal plate that is installed on a door jamb or frame where the door latch or deadbolt extends into to keep the door securely closed.
✔️ Strike Box
The strike box is the plastic box installed behind the strike plate and is attached to the door frame with screws. When the door is closed, the latch or bolt on the lock extends into the strike plate box.
✔️ Keyless Entry
A feature that allows users to unlock a door without using a traditional key, typically using methods such as numeric keypads, fingerprint, or smartphone apps.
✔️ Keypad Entry
A type of keyless entry system that utilizes a numeric keypad for entering a PIN code to unlock the door.
✔️ Bluetooth Connectivity
A wireless communication technology that enables the smart lock to connect and communicate with other devices, such as smartphones or tablets. Bluetooth is short-range and usually about 3-7 meters.
✔️ Wi-Fi Connectivity
A wireless networking technology that allows the smart lock to connect to the internet, providing remote access and control capabilities.
Multiple ways to access your home
Lock or unlock your door without ever needing a physical key again.
Quick Look
Summary of the features of this lock at a glance
3D Face Recognition
Video Door Bell
Fully Automatic
Remote Access
Smart Home
User Capacity
Low-Profile
Splash Resistant
Battery Powered
Emergency Overrides
Left/Right Handed
Dimensions
Basic Smart Lock size information. See the Specification section for more details.
If you need any other information, please contact us.
3D Facial Recognition
Built-in Wi-Fi
Fitment
Requirements
Door Types
Swing Doors
Door Thickness
35 mm - 55 mm
[Contact us for other door thickness requirements]
Door Stile/Frame
- Door Stile requirement depends on the mortise backset chosen. Use one of the options below to calculate it.
Using Easy Calculator
Use our quick 'Backset Calculator' to find the best mortise backset option based on your current door.
Using Size Chart
| Mortise | Minimum Door Stile Width | Mortise Width / Cavity |
| 35mm Mortise | 56 mm | 52 mm |
|---|---|---|
| Swing - 60mm | 80 mm | 91 mm |
No Measurements?
- For new standard doors with a Standard Stile (e.g. residential wooden door), the most commonly used is a '60mm Backset'.
- If unsure, please contact us or your door manufacturer to get door measurements and use our 'Backset Calculator' above.
Control and connect with TTLock App
Customise settings, manage access, check access logs, share digital keys
and much much more..
Controlled Access
Activity Log
Configure Remote*
Manage Multiple
More Customisations
Share access with guests
Enjoy seamless access sharing and enhanced convenience for your guests.
Airbnb Guests
Long-Term Tenants
Cleaners, Babysitters and Caretakes
Tradesperson or Delivery Person
Features in detail
Want to know more about the features of this digital lock?
Then we've got you covered in this section.
🟪 Fully Automatic Locking and Unlocking
🟪 Built-in Wi-Fi for Remote Access
🟪 Suitable for External and Internal Doors
🟪 Long battery life
🟪 Emergency Power & Mechanical Key
🟪 Instant Fingerprint Identification
🟪 3D Face Recognition
🟪 Night Vision Video Door Bell
🟪 Slim, Handle-Free Modern Design
Specifications
Technical details about this smart lock
MORTISE LOCK BODY DIMENSIONS
With 35mm Swing Mortise
With 60mm Swing Mortise
Technical Parameters
Model No
SDL-SA1
Finish
Black
Door Thickness
35 - 55 mm
Mortise
35mm Backset/60mm Backset
Door Handing
Reversible (Left and Right)
Dimensions
H 430mm x W 40mm x D 56mm
Unlock Methods
TTLock App/Bluetooth/Wi-Fi, Face Recognition, Fingerprint, Card (Mifare 13.56 MHz), Keypad/Code, Mechanical Key
Face Recognition
Yes
Video Door Bell
Yes
Connectivity
Bluetooth 4.0 & Wi-Fi 2.4 GHz
User Capacity
200 Fingerprints, 200 Cards, 150 Codes, 50 Faces
Identification Time
Instant recognition under 0.1 seconds
Code
User-defined 4-8 digit
Compatible Smartphone
iOS13.0 or above, Android 5.0 or above
Remote Access
Yes, inbuilt Wi-Fi
Working Voltage
7.4 V (Rechargeable battery; Included)
Working Temperature
External Assembly: -4 °F ~ 149 °F (-20 °C ~ 65 °C), Internal Assembly: 14 °F ~ 131 °F (-10 °C ~ 55 °C)
Battery Life
8000 Cycles
Compatible Smart Home Eco-system
Alexa and Google Assistant
Hardware Type
Push/Pull
Case Material
Aluminium Alloy
Weight
1.6 Kg
Mechanical Key Override
Yes
USB-C Backup Power Interface
Yes
Keypad Backlight
Yes
IP Rating
IP55
Warranty
12 Months
What's in the box
- Interior Assembly
- Exterior Assembly
- Mortise Lock Body + Strike Plate
- Rechargeable Battery
- Backup Keys x 2
- Key Fobs x 3 (Mifare 13.56MHz)
- Screws
- User Guide
- Drill Template
ADDITIONAL RESOURCES
FAQs
Here are some of the frequently asked questions about this product
What happens if I buy a smart door lock and it doesn't work?
You can email us for a full refund or one of experts can try to find another model that works for you. See Refund policy for more information
How can I track my order?
Does the SDL-SA1 need a Wi-Fi Bridge?
No. The SDL-SA1 has Wi-Fi (2.4 Ghz) built directly into the lock, so it doesn't need a separate Wi-Fi Bridge to enable remote access, Amazon Alexa or Google Assistant.
Does face recognition work in the dark?
Yes. The SDL-SA1's 3D face recognition doesn't depend on ambient light, so it reads your face in complete darkness as well as it does in daylight — no porch light needed, and no fumbling for a phone or keys with your hands full. The video doorbell camera has night vision as well, so you can still see who is at the door after dark.
Can I manage authorised faces remotely?
Yes, for faces that are already enrolled. Enrolling a new face has to be done at the door, in person — and that is a privacy design, not a limitation. Your face data is stored inside the lock and never leaves the device; the app only ever holds a reference ID for each enrolled user. Once a face is enrolled, you can manage its access remotely from the app: enable it, disable it or delete it from anywhere. So if a housemate moves out or a cleaner finishes up, you can remove their access without being home.
What happens to the video doorbell if my Wi-Fi drops out?
The lock keeps working exactly as normal — face, fingerprint, code, card and mechanical key all run on the lock itself, not on your network, so nobody gets locked out. Wi-Fi only affects the remote features. When a visitor presses the doorbell icon on the keypad, the lock chimes at the door either way, so if you are home you will still hear it. Ringing your phone is the part that needs Wi-Fi, so if the connection is down at that moment the call can't reach you live — you will receive the notification once the connection is restored. Remote access resumes automatically when the lock is back online.
Setup and support guides for this lock
- Setting up the app and your lock for the first time — Download the app, create an account and pair the lock. Start here.
- Mortise or latch, which do I need? — The difference, and how to tell what your door already has.
- Choosing the correct mortise lock body — Backset, spacing, and how to measure your existing lock.
- Installation tips — What to check and prepare before you fit the lock.
- Installation services — We work with locksmiths around Australia who can fit it for you.
- Adding new users — Give family, staff or guests their own fingerprint, code or fob.
- Passage mode — Hold the door unlocked during set hours, for shops and offices.
- Do I need a Wi-Fi gateway? — What you can and cannot do without one.
- Using the emergency mechanical key — Every lock has a physical key override. Where it is and how it works.
- What the app can do — Access logs, digital keys, remote control and the rest of the feature set.
